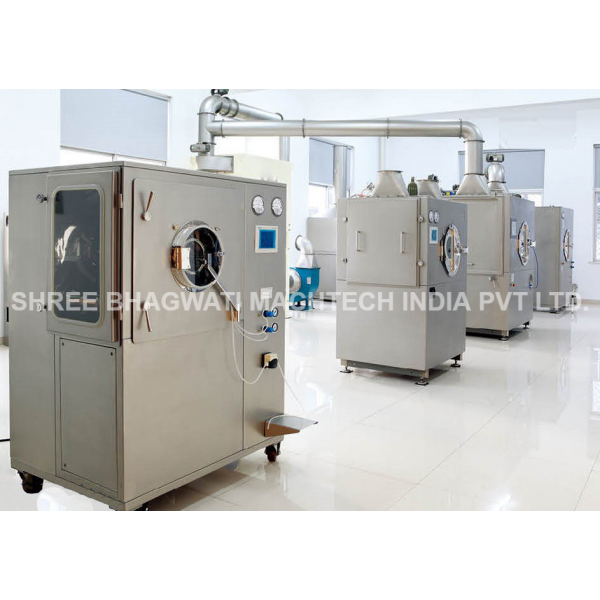

By strictly adhering to the strict cGMP guidelines, the Automatic Tablet Coater is available in top quality designs and with high precision to cater to the rising demands of the tablet coating in various pharma & food processing industries with automatic tablet coating machine (film coating machine)

TABLET COATER APPLICATION & PROCESS

Shree Bhagwati Mechtech’s advance and efficient Tablet Coating Machine are chiefly used in food and pharmaceutical companies. The cGMP qualified machine is an electromechanical system. The film coating machine is an energy-saver, highly efficient and provides a clean environmentfor sugar &film coating of tablets, aqueous sugar & film coating, organic film coating of candies & pills, etc.

AUTOMATIC TABLET COATER IS DESIGNED FOR

  • Aqueous & Enteric Coating, Organic Solvent based Film Coating
  • Coating of Sugar

WORKING PRINCIPLE OF TABLET COATING MACHINE

Under the action of streamlining of baffles, the tablesconstant motion in complex orbital manner in the closed revolving drum.In the automatic tablet coating machine, the medium of coating sprays the coating material automatically as per the technical process and its parameters rationally. Inside the film coating machine, hot air infiltrates through the tablet’s core layers and get dispensed through the bottom layers. Due to this the tablets get dried and their coating becomes more even, hence forming smooth and solid surface of film on tablets. The complete process is carried out in the automatic tablet coating machine with HMI controlled PLC.

SALIENT FEATURES OF AUTO TABLET COATER

  • As per the cGMP(Current Good Manufacturing Practices) design instructions.
  • Operations in-between batches are flexible.
  • Pollution free operations supported by treating the expended air.
  • Silicon food grade sealed doors, covers & safety guards.
  • Adjustable AC Speed Drive in Perforated Pan.
  • Technical operating area installed with Exhaust Air Unit & Entire Inler Air Handler.
  • PLC controlled software & operation for a user friendly experience.
  • Comes with validation document & manual for machine instruction DQ,IQ, OQ, FAT & SAT with calibration and test certificate.
  • Special diverter assemblage for tablet discharging.
  • Inlet & outlet duck attached with pneumatically operated damper to control outlet & inlet air.
  • Process visualization facility with glass contained stainless steel door closed at Pan mouth.
  • Pan containing FLP fluorescent light for radiance
  • AC frequency drive of both the blowers control Inlet & Exhaust flow of air.
  • Adjustable spray guns at front entry arm made of stainless steel.
  • AISI 316 for contact parts & AISI 304 for non-contact parts.
  • Sugar & film coating of tablets along with batch receipt management through fully automated PLC controls with touch screen ofSiemens/ Allen Bradley. Optional SCADA connectivity with FDA 21 CFR part 11.
  • Separate Technical and production area
  • Spraying ball & spraying nuzzle based outer washing from both the sides in the internal pan with advanced WIP/CIP system.
  • Exhaust blower & 5micron wet or filter scrubber in dust collection system equipped with exhaust air handling unit.
  • Hassle free removing of Silicon seal around exhaust or inlet air plenum for tidying.
  • 10 micron Pre filter, dehumiditifier, 5micron final filter, .3 micron HEPA Filter, electric/steam heat exchanger with Fins of 304 stainless steel are fitted in inlet air handling unit.
  • Stainless steel of 304 quality & powder coated from outside in double puff insulated screen constitute the inlet air handling unit.
  • Machine structure made of perforated pan, exhaust air & inlet air plenum with air tight door and S.S.304 quality fit close drive.
  • Atomized spray gun, high précised flow peristaltic pump,pneumatically stirring solution holding tank, adjustable spray gun arms are constituted in Automatic spraying machine.
  • Easy cleaning during changeover becomes easy due to tri-clover joints in stainless steel piping.
  • Pan Bottom is made of stainless steel 316 for powder collection.
  • Magnificent blending and tumbling by an uncommon structure of removable on each slanting face of the container and hostile to sliding confounds given on theperforated diagonal face.

OPTIONAL FEATURES OF FILM COATING MACHINE

  • Collector of Dry Dust.
  • Excess moisture Remover(dehumidifier).
  • Bin loader tablet charging.
  • Electric/ steam heat exchanger.
  • Connectivity through SCADA.
  • Confectionery product based solid pan.
  • Convertible Pan.
  • Wet Scrubber.

TECHICAL SPECIFICATIONS OF FILM COATING MACHINE

Model
Bhagwati – 30
Bhagwat – 36
Bhagwat – 42
Bhagwat – 48
Bhagwat – 60
Bhagwat – 66
Pan Diameter – Inch(mm)
30″ -750
36″ -920
42″ -1070
48″ – 1220
60″ – 1525
66″-1675
Approx Working Capacity
30
75
100
150
350
500
Pan Mouth Diameter
Pan Speed RPM
Main Drive Motor HP
Please contact us for more details.
Inlet Air Blower Motor HP
Inlet air cfm
Steam Consume. kg/hr @ 4 bar
Comp. Air cfm @ 6 bar
