Lab Blender
For an even mixing, blending or homogenizing of the powders or granules, these lab scale mixers come with various ranges to cater to the needs of industries where powder and granules mixing is their top priority.
LAB BLENDER APPLICATION & PROCESS

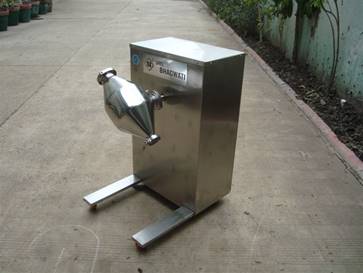

The Shree Bhagwati Mechtech (India) Pvt. Ltd. compact New LABO BLEND- Octagonal/ “V’ Shape / Double Cone and Bin blender is a multi purpose mixer suitable for effective and uniformed mixing, lubricating and blending process of dry powder and granules homogeneously for facilitating better flow ability of the material for Tabletting and capsules.
The basic machine consists of product mixing drum and it’s available in different size and shape. A product drum mounted with single ends by hub shafts on directly and it’s rotate in shaft axis. The drive is completely closed with SS 304Q machine body. The drive unit consisting of motor, reduction gear box and control panel.
NEW DESIGN FEATURES OF V SHAPE, DOUBLE CONE BLENDER
- Designed strictly compliance with the stipulation of cGMP.
- Product contact parts AISI 316/ 316 L Quality & Food grade silicon.
- Easy to interchangeable Product container any shape with capacity of 1 kg to 10 kg.
- Rigid drive through gearbox and motor.
- AC Frequency Variable speed up to 30 RPM of product container.
- Safety reeling with limit switch.
- Product contact parts are mirror finished and non contact parts are matt finished.
- Electric Control panel with cycle timer and RPM indicator.
- Option for Interchangeable product bowl with different capacity 1 kg to 10 kg batch size.
- Option for different shape of product container like Octagonal, “V” shape, Double cone and Bin Type.
- Option for PLC Controls with MMI Touch screen interface.
SAFETY FETURES OF OCTAGONAL LAB BLENDER
- Safety reeling with limit switch.
- Auto stop when process time completed.
- Overload relay controls.
OCTAGONAL DOUBLE CONE BLENDER VIDEO
